About Axial Arms
Axial Arms works with top manufacturers to produce the most functional direct impingement gas system for the AR platform. Our patented pinned tab gas block utilizes an easily removable mechanical connection in a low-profile design. Axial Arms pinned tab gas block provides the mechanical security of a permanently staked A2 front sight post but allows for the modularity of modern low-profile gas blocks that fit under free float handguards.
How It Works

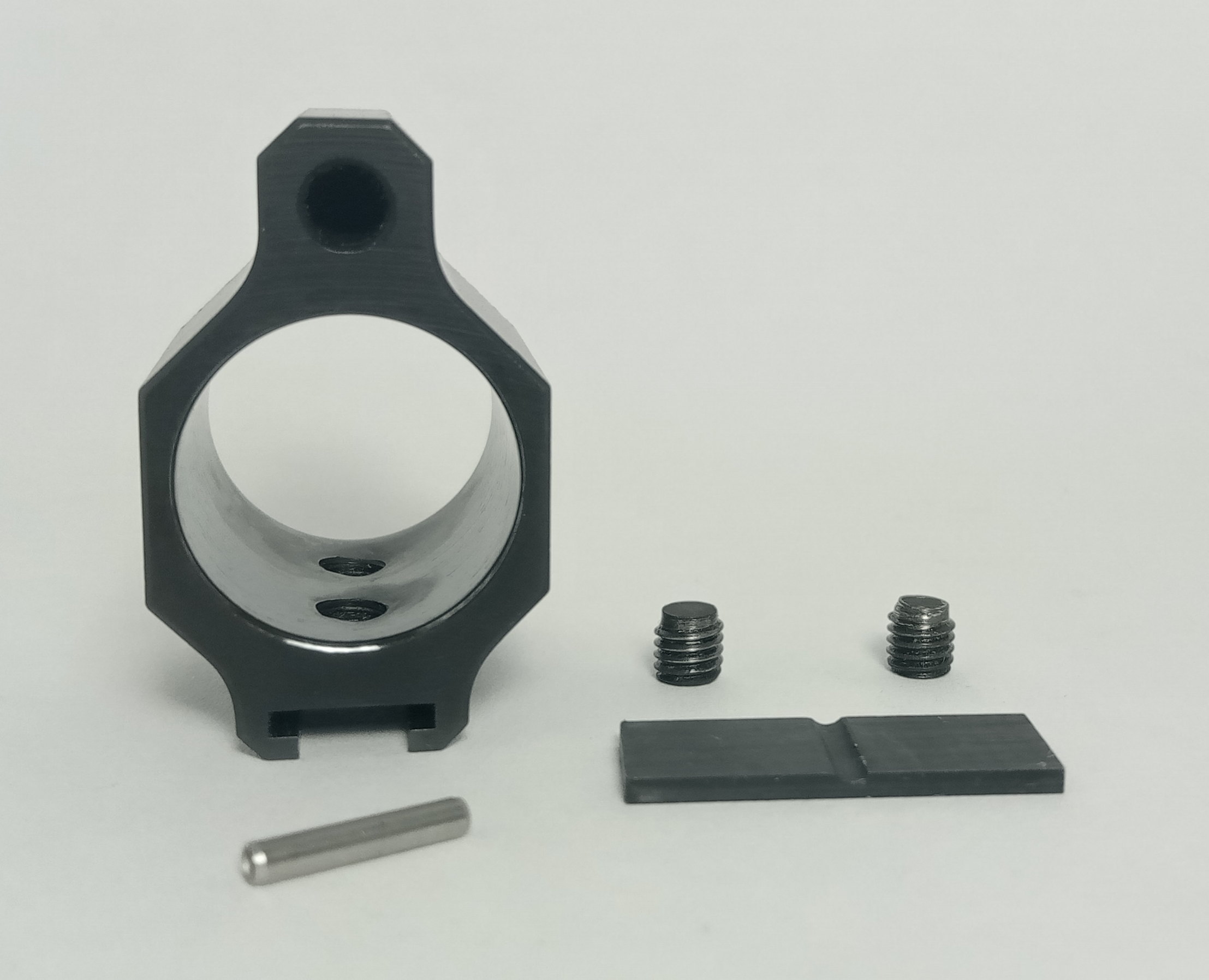

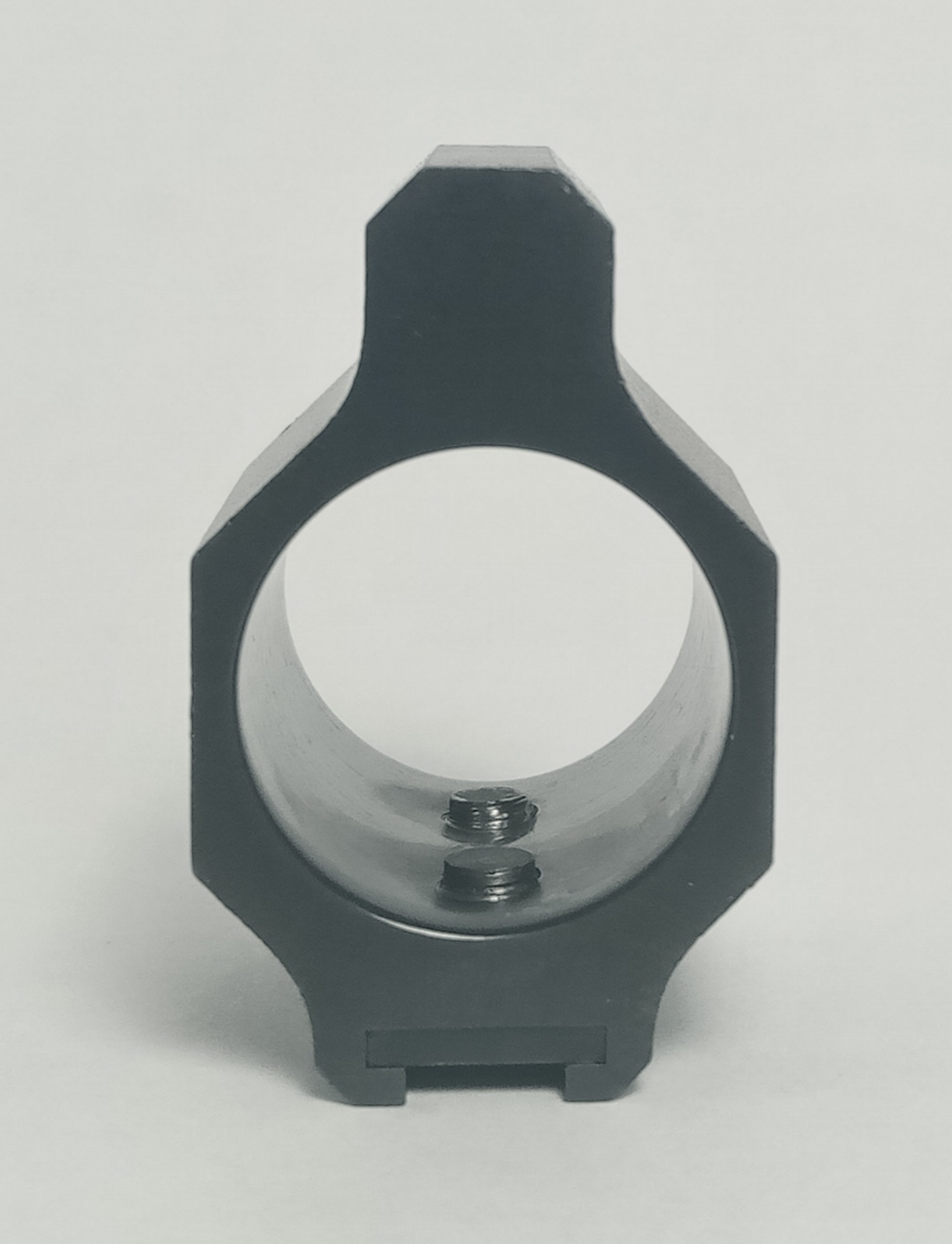

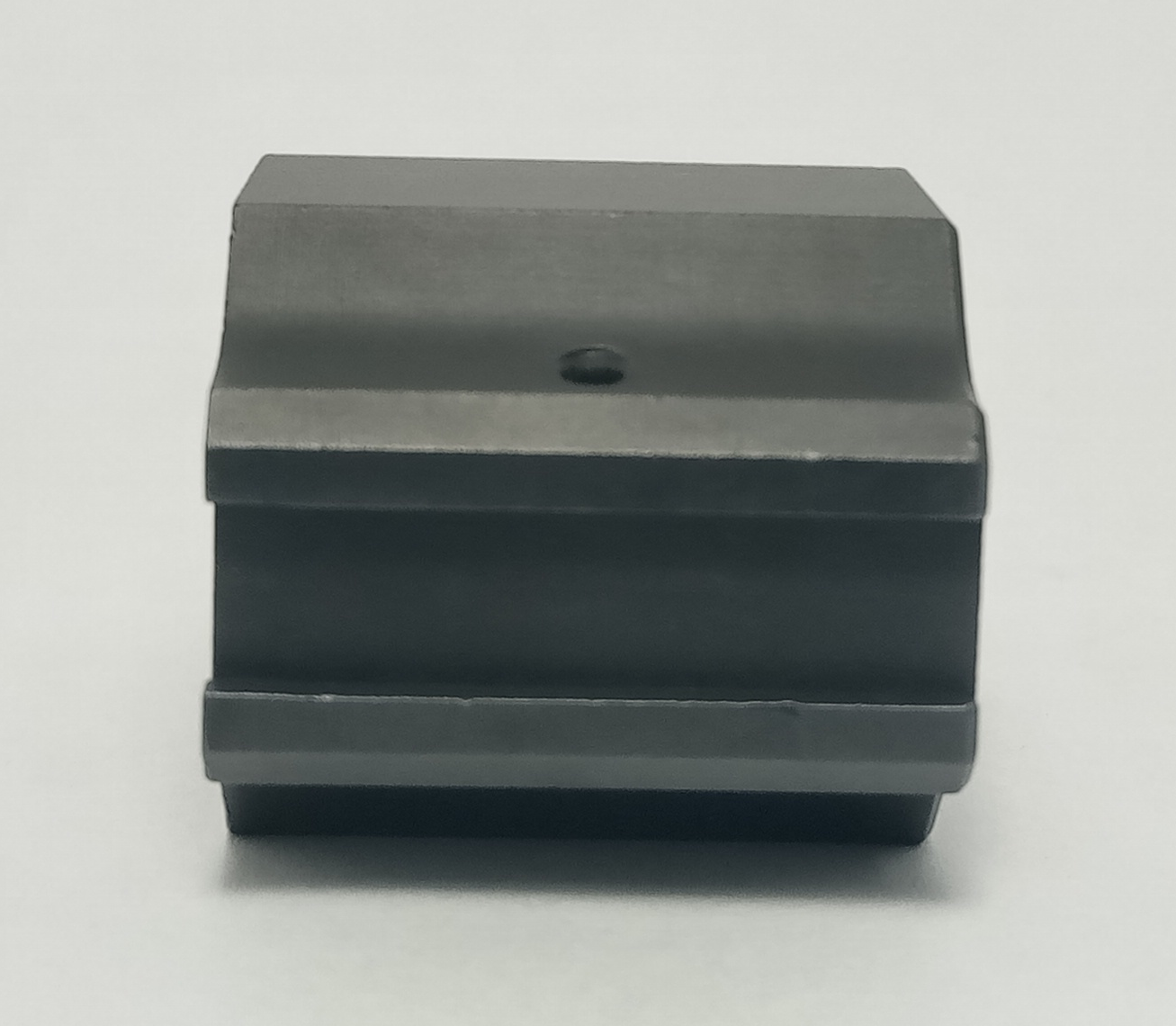

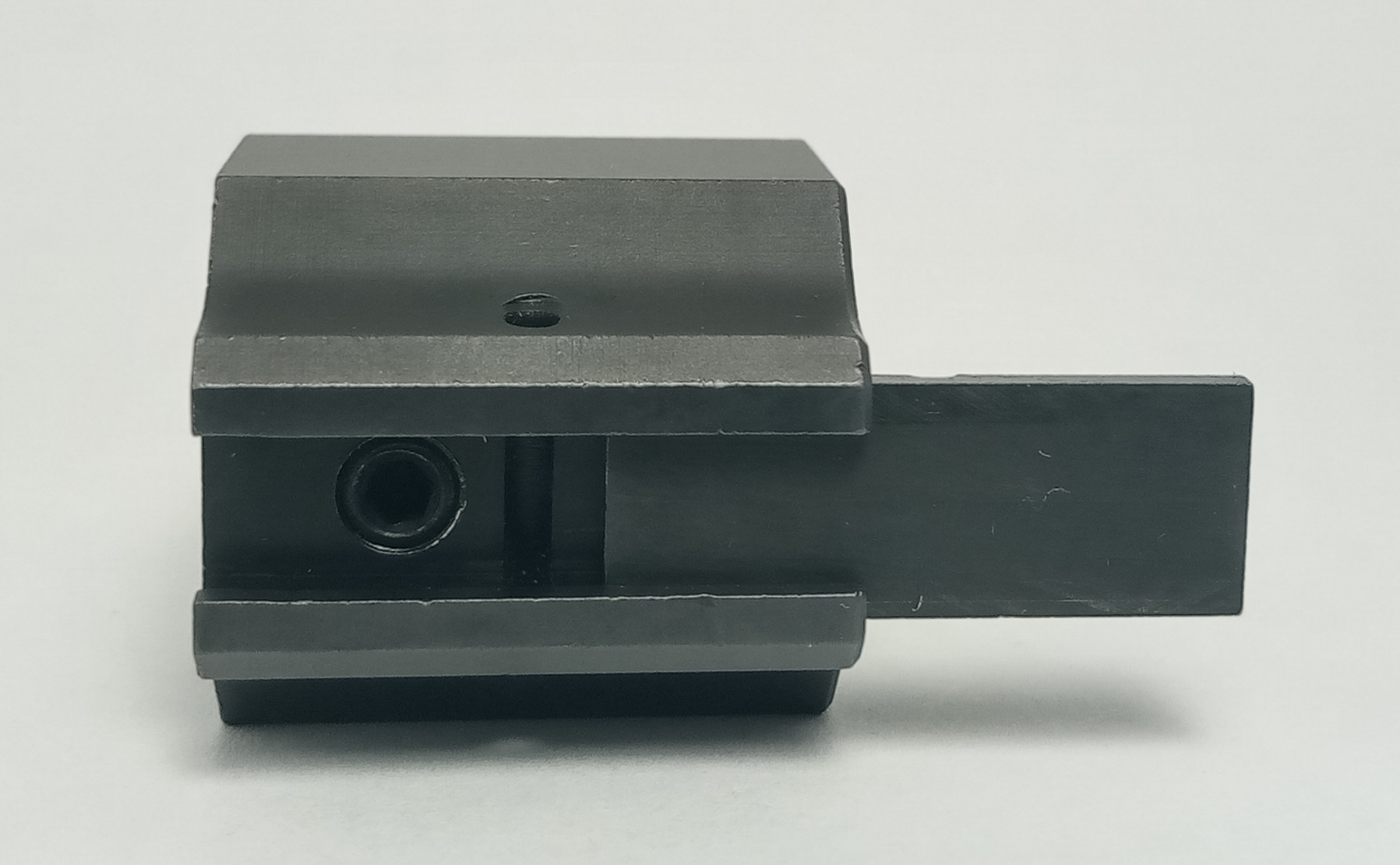

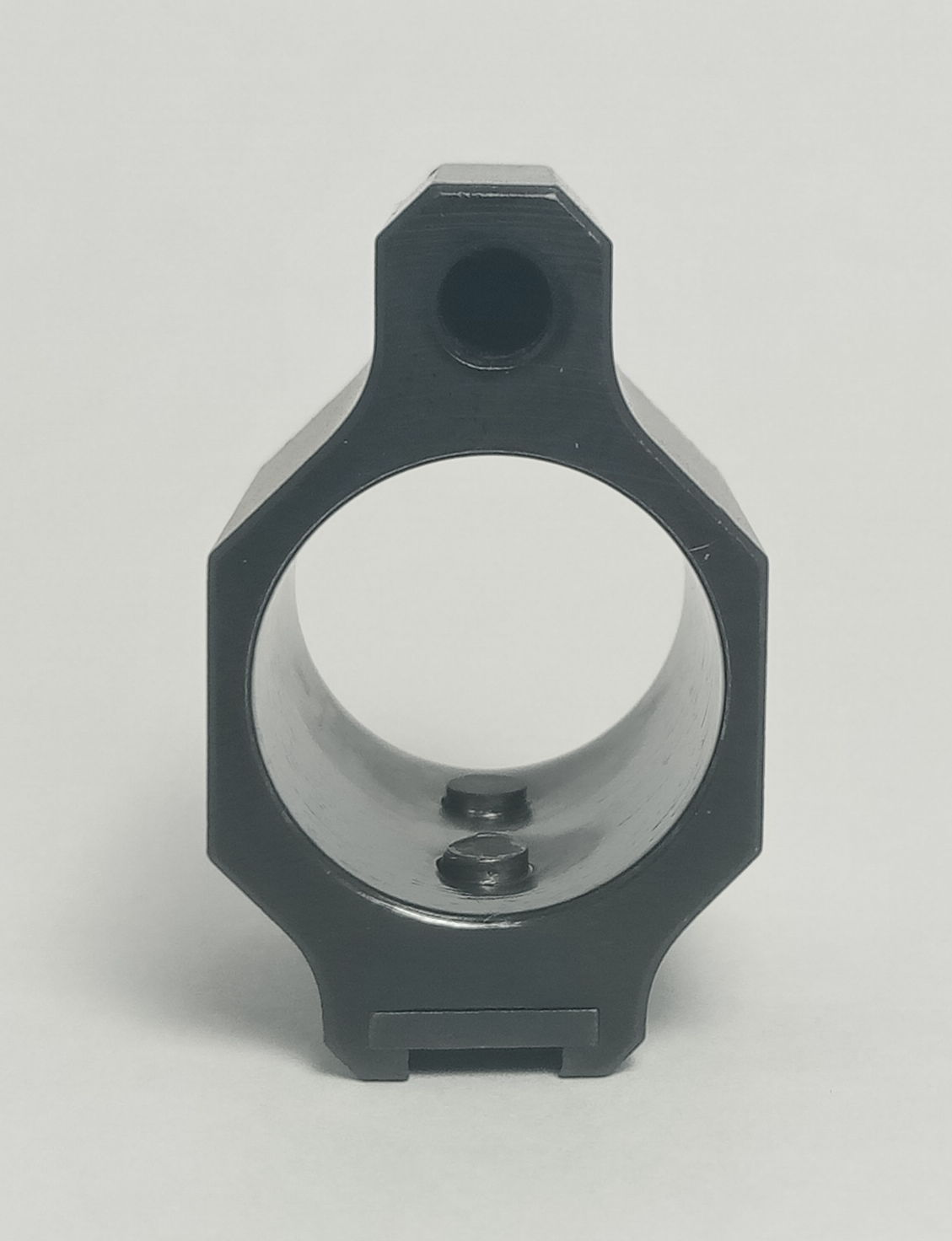

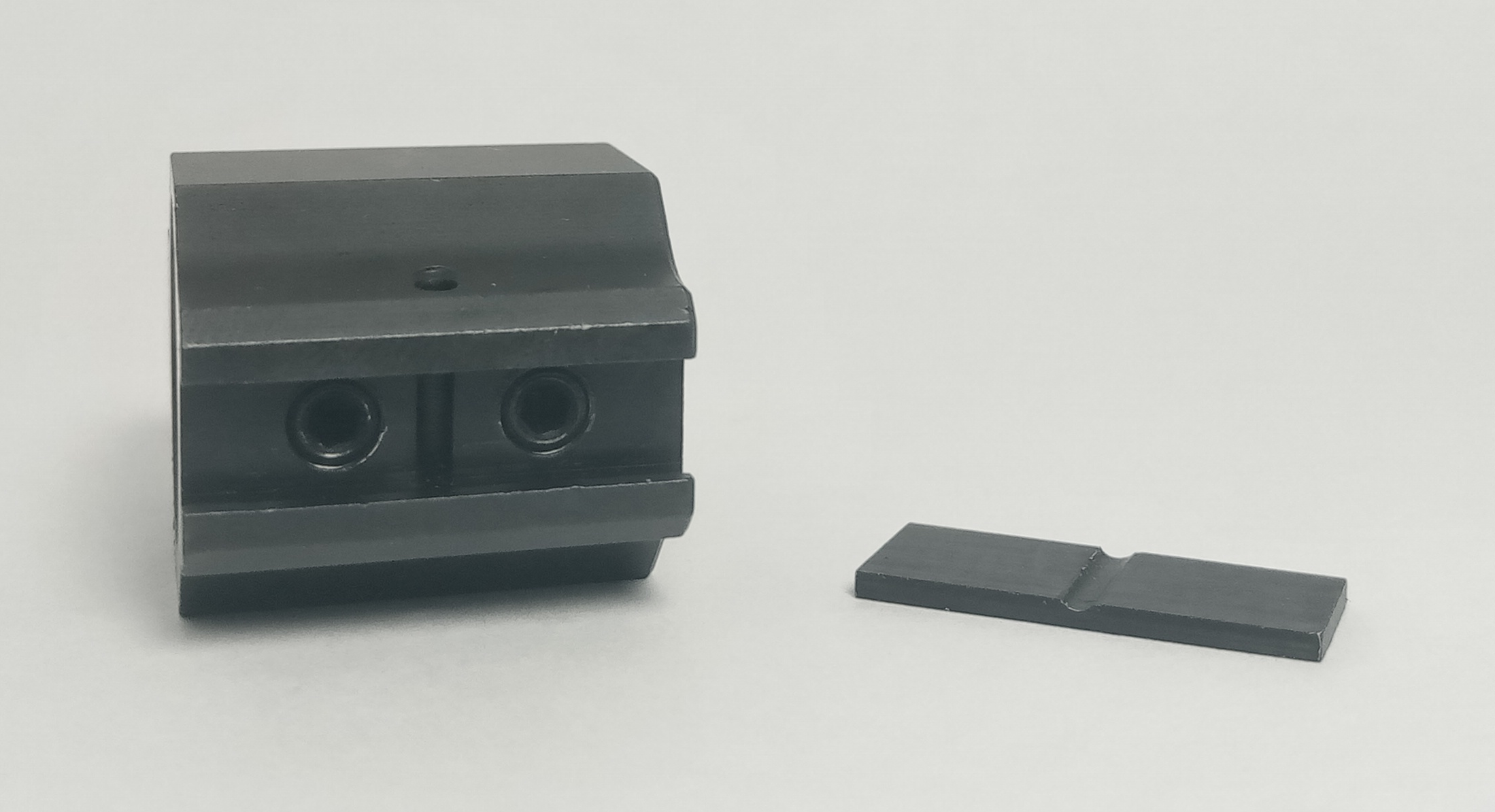

The Axial Arms pinned tab gas block uses two cylinder-tipped set screws that seat into matching dimples in the barrel. The gas block has a slot that accepts a tab, which slides over the installed set screws keeping them physically locked in place and incapable of backing out. The cylinder-tipped set screws also act as a self-aligning mechanism, ensuring the gas block has to be properly aligned to fully seat the set screws. The tab is then pinned into the gas block body using a roll pin. The roll pin is the same diameter as the gas tube roll pin allowing for a single tool to be used to remove both. This tab design ensures a strong, consistent alignment, allowing gas to cycle the weapon reliably for continued operation.
Reliability when it matters.
Patent No.: US 12,123,675 B1
CAGE CODE: 1ZQE7
Trusted Partners
Products
Free Shipping On All Orders!

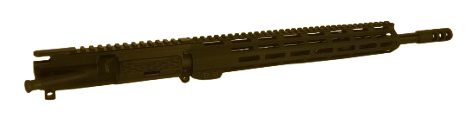

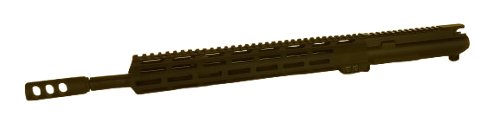

Complete Upper Receivers
Axial Arms 18" .308 AR-10 Complete Upper Receiver
18" .308 AR-10 Complete Upper Receiver: $1249.99
18" .308 AR-10 Complete Upper Receiver Specifications
- Upper Receiver: Mil-Spec 7075-T6 Forged Aluminum with Black Anodized Finish
- Barrel: 18" Government / SOCOM Profile, 1:10 Twist Rate, QPQ Nitride Finish, 4150V Chrome Moly
- Gas Block: .750" Pinned Tab Gas Block
- Caliber: .308
- Handguard: M-LOK Free Float
- Gas System Length: Rifle
- Muzzle: 5/8-24 thread
- Muzzle Device: Muzzle Break/Compensator
- Does not include bolt carrier group or charging handle.
-
Made in the USA
Axial Arms 16" 5.56 AR-15 Complete Upper Receiver
16" 5.56 AR-15 Complete Upper Receiver: $949.99
16" 5.56 AR-15 Complete Upper Receiver Specifications
- Upper Receiver: Mil-Spec 7075-T6 Forged Aluminum with Black Anodized Finish and M4 Feed Ramps
- Barrel: 16" Government / SOCOM Profile, 1:7 Twist Rate, QPQ Nitride Finish, 4150V Chrome Moly
- Gas Block: .750" Pinned Tab Gas Block
- Caliber: 5.56 NATO and .223
- Handguard: M-LOK Free Float
- Gas System Length: Midlenght
- Muzzle: 1/2-28 thread
- Muzzle Device: Muzzle Break/Compensator
- Does not include bolt carrier group or charging handle.
-
Made in the USA
Axial Arms 11.5" 5.56 AR-15 Pistol Complete Upper Receiver
11.5" 5.56 AR-15 Pistol Complete Upper Receiver: $949.99
11.5" 5.56 AR-15 Pistol Complete Upper Receiver Specifications
- Upper Receiver: Mil-Spec 7075-T6 Forged Aluminum with Black Anodized Finish and M4 Feed Ramps
- Barrel: 11.5" Government / SOCOM Profile, 1:7 Twist Rate, QPQ Nitride Finish, 4150V Chrome Moly
- Gas Block: .750" Pinned Tab Gas Block
- Caliber: 5.56 NATO and .223
- Handguard: M-LOK Free Float
- Gas System Length: Carbine
- Muzzle: 1/2-28 thread
- Muzzle Device: Muzzle Break/Compensator
- Does not include bolt carrier group or charging handle.
-
Made in the USA
Axial Arms 10.5" 300 Blackout AR Pistol Complete Upper Receiver
10.5" 300 Blackout AR Pistol Complete Upper Receiver: $949.99
10.5" 300 Blackout AR Pistol Complete Upper Receiver Specifications
- Upper Receiver: Mil-Spec 7075-T6 Forged Aluminum with Black Anodized Finish and M4 Feed Ramps
- Barrel: 10.5" Government / Heavy Profile, 1:7 Twist Rate, QPQ Nitride Finish, 4150V Chrome Moly
- Gas Block: .750" Pinned Tab Gas Block
- Caliber: .300 Blackout (300 BLK)
- Handguard: M-LOK Free Float
- Gas System Length: Pistol
- Muzzle: 5/8-24 thread
- Muzzle Device: Muzzle Break/Compensator
- Does not include bolt carrier group or charging handle.
-
Made in the USA

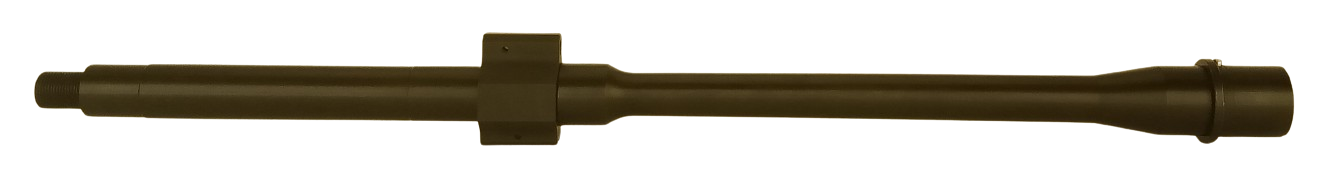

Barrel & Gas Block Combos
Axial Arms 18" .308 AR-10 Barrel & Pinned Tab Gas Block
18" .308 AR-10 Barrel & Pinned Tab Gas Block: $329.99
Barrel Specifications
- Length: 18"
- Material: 4150V Chrome Moly
- Caliber: .308
- Profile: Government / SOCOM
- Gas System Length: Rifle
- Twist Rate: 1 : 10
- Finish: QPQ Black Nitride
- Muzzle: 5/8-24
- Dimples: 2 - For use with Cylinder-Tipped Set Screws
-
Made in the USA
Pinned Tab Gas Block Specifications
- Diameter: .750"
- Material: 4140 Steel
- Finish: Black Nitride
- Adjustable: Non-Adjustable
- Contains:
- (1) Gas Block Body
- (1) Tab
- (2) 10-32 Cylinder-Tipped Set Screws
- (1) Tab Retention Roll Pin
-
Made in the USA
Axial Arms 16" 5.56 AR-15 Barrel & Pinned Tab Gas Block
16" 5.56 AR-15 Barrel & Pinned Tab Gas Block: $329.99
Barrel Specifications
- Length: 16"
- Material: 4150V Chrome Moly
- Caliber: 5.56 NATO and .223
- Profile: Government / SOCOM
- Gas System Length: Midlength
- Twist Rate: 1 : 7
- Finish: QPQ Black Nitride
- Muzzle: 1/2-28
- Dimples: 2 - For use with Cylinder-Tipped Set Screws
-
Made in the USA
Pinned Tab Gas Block Specifications
- Diameter: .750"
- Material: 4140 Steel
- Finish: Black Nitride
- Adjustable: Non-Adjustable
- Contains:
- (1) Gas Block Body
- (1) Tab
- (2) 10-32 Cylinder-Tipped Set Screws
- (1) Tab Retention Roll Pin
-
Made in the USA

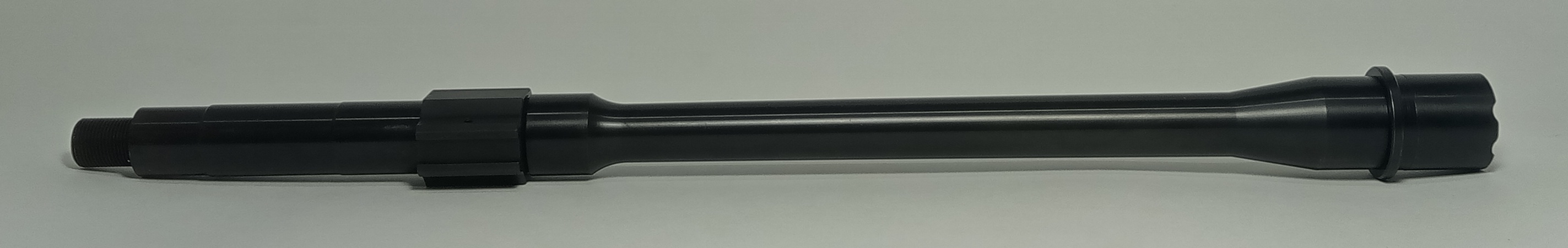

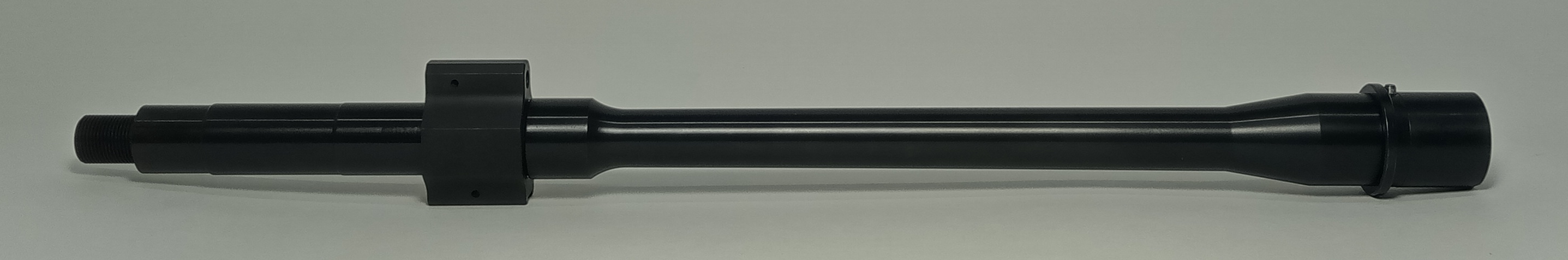

Axial Arms 11.5" 5.56 AR-15 Pistol Barrel & Pinned Tab Gas Block
11.5" 5.56 AR-15 Pistol Barrel & Pinned Tab Gas Block: $329.99
Barrel Specifications
- Length: 11.5"
- Material: 4150V Chrome Moly
- Caliber: 5.56 NATO and .223
- Profile: Government / SOCOM
- Gas System Length: Carbine
- Twist Rate: 1 : 7
- Finish: QPQ Black Nitride
- Muzzle: 1/2-28
- Dimples: 2 - For use with Cylinder-Tipped Set Screws
-
Made in the USA
Pinned Tab Gas Block Specifications
- Diameter: .750"
- Material: 4140 Steel
- Finish: Black Nitride
- Adjustable: Non-Adjustable
- Contains:
- (1) Gas Block Body
- (1) Tab
- (2) 10-32 Cylinder-Tipped Set Screws
- (1) Tab Retention Roll Pin
-
Made in the USA

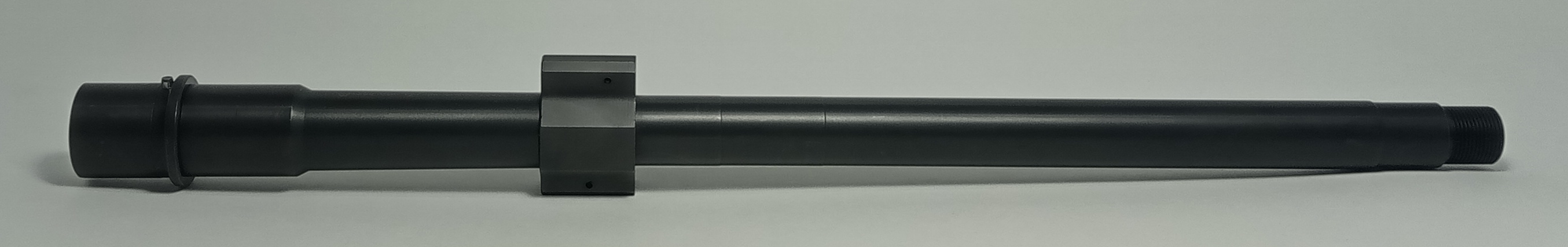

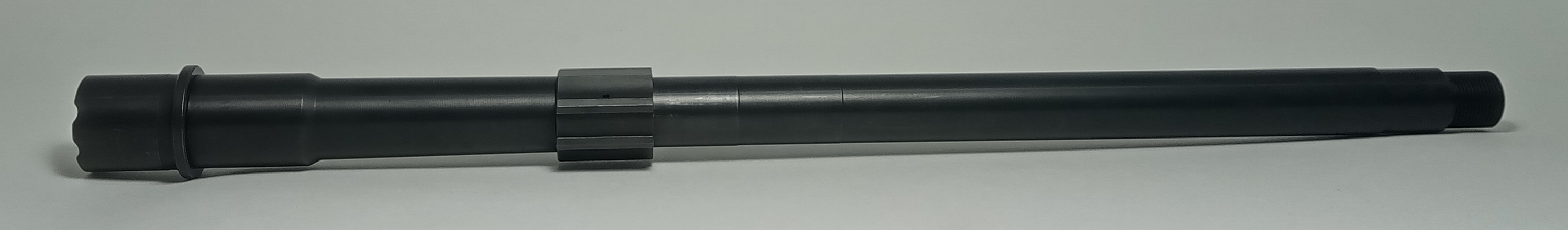

Axial Arms 10.5" 300 Blackout AR Pistol Barrel & Pinned Tab Gas Block
10.5" 300 Blackout AR Pistol Barrel & Pinned Tab Gas Block: $329.99
Barrel Specifications
- Length: 10.5"
- Material: 4150V Chrome Moly
- Caliber: .300 Blackout (300 BLK)
- Profile: Heavy
- Gas System Length: Pistol
- Twist Rate: 1 : 7
- Finish: QPQ Black Nitride
- Muzzle: 5/8-24
- Dimples: 2 - For use with Cylinder-Tipped Set Screws
-
Made in the USA
Pinned Tab Gas Block Specifications
- Diameter: .750"
- Material: 4140 Steel
- Finish: Black Nitride
- Adjustable: Non-Adjustable
- Contains:
- (1) Gas Block Body
- (1) Tab
- (2) 10-32 Cylinder-Tipped Set Screws
- (1) Tab Retention Roll Pin
-
Made in the USA
Barrels
Axial Arms 18" .308 AR-10 Barrel
18" .308 AR-10 Barrel: $249.99
Barrel Specifications
- Length: 18"
- Material: 4150V Chrome Moly
- Caliber: .308
- Profile: Government / SOCOM
- Gas System Length: Rifle
- Twist Rate: 1 : 10
- Finish: QPQ Black Nitride
- Muzzle: 5/8-24
- Dimples: 2 - For use with Cylinder-Tipped Set Screws
-
Made in the USA

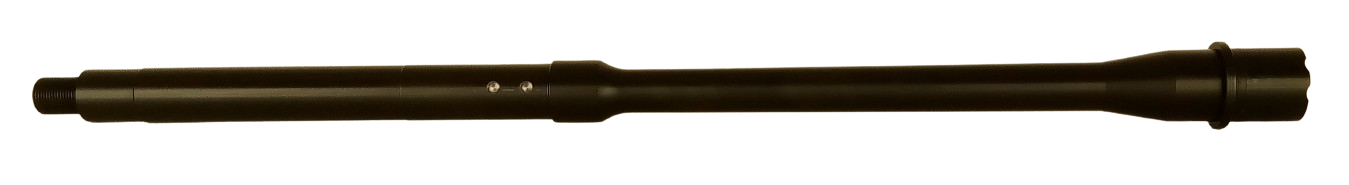

Axial Arms 16" 5.56 AR-15 Barrel
16" 5.56 AR-15 Barrel: $249.99
Barrel Specifications
- Length: 16"
- Material: 4150V Chrome Moly
- Caliber: 5.56 NATO and .223
- Profile: Government / SOCOM
- Gas System Length: Midlength
- Twist Rate: 1 : 7
- Finish: QPQ Black Nitride
- Muzzle: 1/2-28
- Dimples: 2 - For use with Cylinder-Tipped Set Screws
-
Made in the USA
Axial Arms 11.5" 5.56 AR-15 Pistol Barrel
11.5" 5.56 AR-15 Pistol Barrel: $249.99
Barrel Specifications
- Length: 11.5"
- Material: 4150V Chrome Moly
- Caliber: 5.56 NATO and .223
- Profile: Government / SOCOM
- Gas System Length: Carbine
- Twist Rate: 1 : 7
- Finish: QPQ Black Nitride
- Muzzle: 1/2-28
- Dimples: 2 - For use with Cylinder-Tipped Set Screws
-
Made in the USA

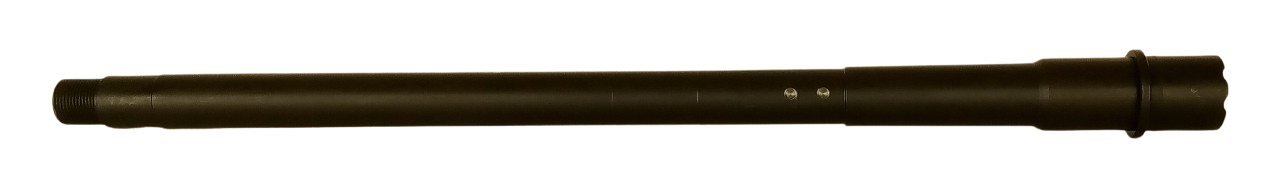

Axial Arms 10.5" 300 Blackout AR Pistol Barrel
10.5" 300 Blackout AR Pistol Barrel: $249.99
Barrel Specifications
- Length: 10.5"
- Material: 4150V Chrome Moly
- Caliber: 300 Blackout (300BLK)
- Profile: Heavy
- Gas System Length: Pistol
- Twist Rate: 1 : 7
- Finish: QPQ Black Nitride
- Muzzle: 5/8-24
- Dimples: 2 - For use with Cylinder-Tipped Set Screws
-
Made in the USA
Pinned Tab Gas Blocks

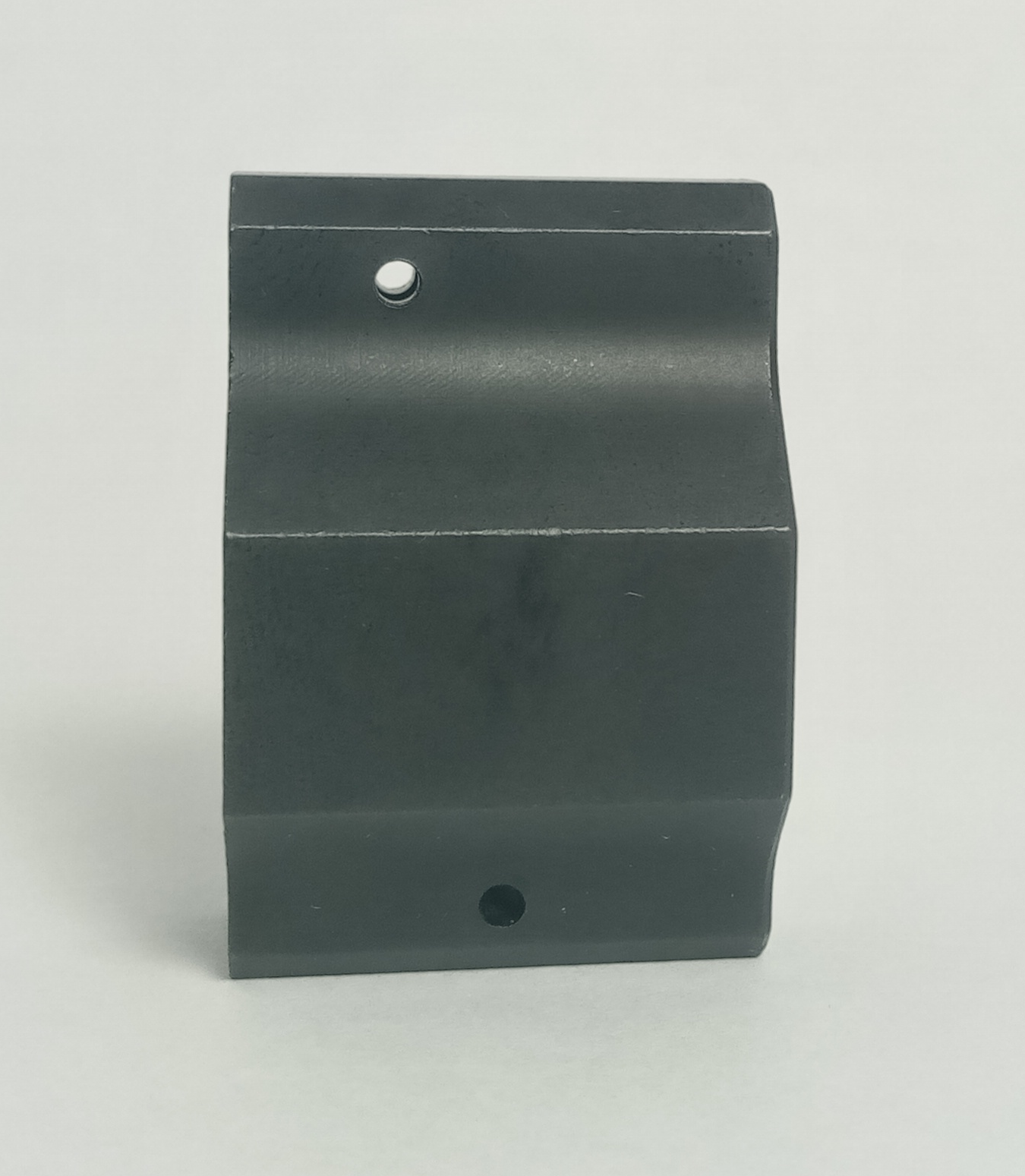

Axial Arms .750" Pinned Tab Gas Block
Pinned Tab Gas Block: $79.99
Pinned Tab Gas Block Specifications
- Diameter: .750"
- Material: 4140 Steel
- Finish: Black Nitride
- Adjustable: Non-Adjustable
- Contains:
- (1) Gas Block Body
- (1) Tab
- (2) 10-32 Cylinder-Tipped Set Screws
- (1) Tab Retention Roll Pin
-
Made in the USA
Set Screws

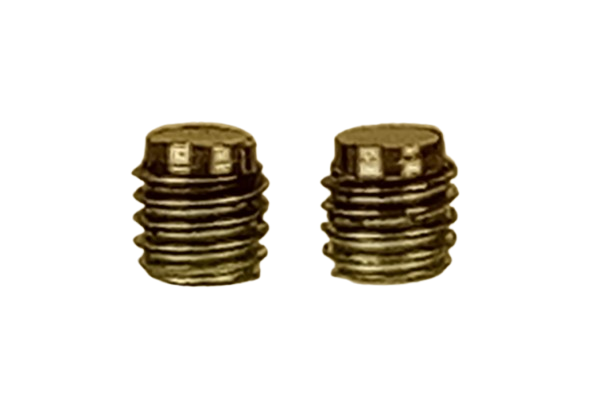

2 - Axial Arms 10-32 Cylinder-Tipped Set Screws
(2) 10-32 Cylinder-Tipped Set Screws: $10.99
10-32 Cylinder-Tipped Set Screws Specifications
- Thread: 10-32 UNF
- Tip: Cylinder-Tipped
- Material: Steel
- Finish: Black
- Contains:
- (2) 10-32 Cylinder-Tipped Set Screws per pack
-
Made in the USA
Coming Soon!
Axial Arms 0.750" Barrel Dimple Jig
Dimple Jig to allow you to drill cylinder-tipped dimples in any barrel with a 0.750" gas journal.
- Diameter: 0.750"
- Dimples Holes: 2 for Cylinder-Tipped set screws
- Material: Aluminum
-
Made in the USA
